Primavera P6 Adding Activities and Activity Types: How do you add activities in Primavera P6?

Once you have created your project’s work breakdown structure (WBS) in Oracle Primavera P6, you will insert activities under the specific WBS levels. Activities are the main work elements of a project. A schedule is about creating activities, inserting activity durations and linking them with relationships. When all these elements are in place, the next step is to calculate the duration of the schedule by using the critical path method (CPM). Oracle Primavera P6 adding activities and activity types is an important step in scheduling.

Primavera P6 Activity Types

Hey there, project management aficionados! Are you ready to learn adding activities and activity types in Primavera P6 ?

Understanding the Role of Activities and Activity Types in Primavera P6

In this software, activities represent the tasks to complete. So, the project can move forward. On the other hand, activity types are the labels or categories. These help you classify these tasks based on their nature or the kind of work.

Facts about Primavera P6 Adding Activities in Oracle Primavera P6: how to add activities in Primavera P6

1. In Primavera P6, activities are the fundamental units and they represent tasks within your project. Each activity is a step towards project completion.
2. Primavera P6 offers multiple activity types. These are including Task Dependent, Resource Dependent, Milestone and Level of Effort (LOE). And each of them is serving different planning and tracking needs.
3. The activity type influences how the activity interacts with the overall project schedule. Hence, this is affecting duration, resource allocation and dependencies.
4. Adding activities and assigning the right types are important for good resource management.
5. Proper activities can give a better project tracking and performance analysis.
6. You can modify activities and their attributes as the project evolves. This option offering flexibility for any surprises.
7. Primavera P6 can handle thousands of activities at the same time. Hence, this function is making it suitable for managing large-scale and complex projects.
8. You can import or export activities to other projects within Primavera P6. So, project setup and knowledge transfer is not a big deal.

Step-by-Step Guide to Adding Activities in Primavera P6: How to assign activity in Primavera P6?

• As always, you first open the project. Once that’s set, you will head over to the Activities tab.
• If you wanna add a new activity, you should look for an Add button or something similar and click on it.
• Next, you will want to fill in all the necessary information for your new activity. Such as the name, start and end dates and any other important details.
• After that, you should choose the most suitable activity type from menu.
• Now, you will save changes and it is done.

Takeaways from Adding Activities and Activity Types in Oracle Primavera P6: P6 scheduling best practices

• Learning how to add activities and choose the right types in Primavera P6 is what you need to learn at first.
• Also, understanding the different activity types helps with strategic planning. So this is ensuring each task aligns with project goals and available resources.
• Efficiently managing these activities also leads to smoother project execution. So the tasks will be completed in the correct order and resources will be used efficiently.
• You scan modify activities as projects evolve can greatly influence outcomes. Using Primavera P6’s features for adding and categorizing activities provides project managers a tool for planning and control.
• Clear organization of activities also improves communication among team members
• Plus, the data of activities helps managers make informed decisions. This is reducing uncertainty and increasing the chances of project success.

Deciphering Primavera P6 Activity Types

Primavera P6 Adding Activities offers different activity types for diverse needs. Also, here are some of the most common ones you will encounter.

• Task Dependent one is ideal for activities whose duration depends on the amount of work.
• While Resource Dependent one is perfect for tasks with limited resources.
• Milestone: You can use this for key project milestones. And then, you can mark significant points in your project timeline.
• Level of Effort (LOE): This is best for ongoing activities and it support other tasks. Such as project management or quality assurance.

Choosing the right activity type influences how the activity behaves in overall project timeline and resource allocation.

Primavera P6 Adding Activities

Activities represent various items, works and deliverables within a work schedule. According to PMBOK, an Activity is a distinct and scheduled portion of work performed during the course of a project.

Activities are the basic work elements of a project. Also, an activity can be a task, item or event.

Describing the activities is an important step in the project scheduling process. Also, therefore, it requires an expert’s knowledge to make a successful activity definition.

How Many Activity Types Are There in Primavera P6 for Building a Project Schedule?

There are six different types of activities in Oracle Primavera P6. Below are only brief descriptions of the activity types.

Let’s review the six different types of activity.

Task Dependent: Primavera P6 Adding Activities

Task Dependent is handy when work needs to be completed in specific time period. This is regardless of the assigned resource. Also, task dependent activities are scheduled based on the activity’s calendar. Rather than the calendars of the resources.

Resource Dependent

The Resource Dependent activity type in Primavera P6 is used when the completion of a task relies on the availability of assigned resources. This means resources can affect the duration of the activity. Resources here are scheduled according to the calendars. This helps ensure that everything is aligned with their availability.

Level of Effort

Level of Effort is for activities such as project management, executive, clerical work, security guard, etc. activities. Duration of is Level of Effort depends on its predecessor/ successor activities.

Start Milestone

Start Milestone is a zero duration activity with only a start date. Also, it is marking the beginning of a phase or an important event.

Finish Milestone

Finish Milestone is a zero duration activity with only a finish date. Also, it marks the completion of a phase or an important event.

WBS Summary

WBS Summary compromises a batch of activities that have a common WBS (Work Breakdown Structure) level. Also, the start date of the WBS Summary is the earliest start date. And the finish date is the latest finish date.

Primavera P6 Adding Activities

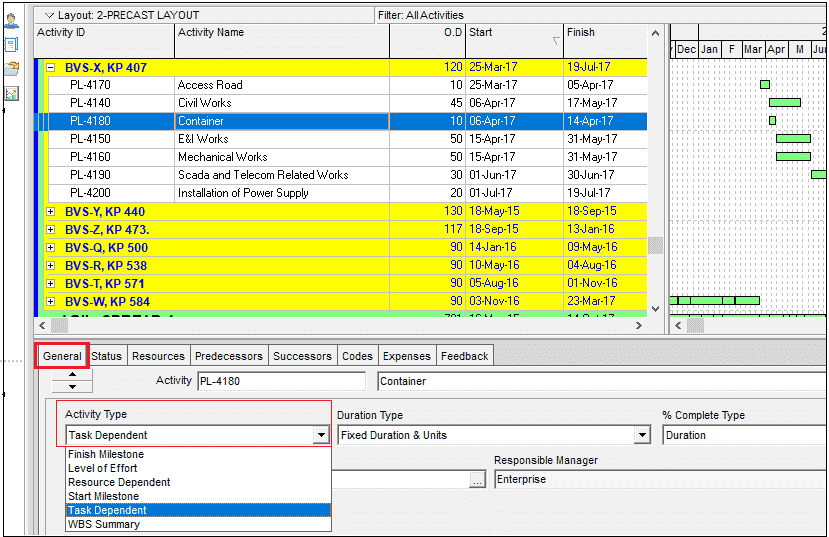

In P6, you can select Activity type using the General tab at the bottom details area as shown in Figure 1.

How to Add Activities in Oracle Primavera P6 ?

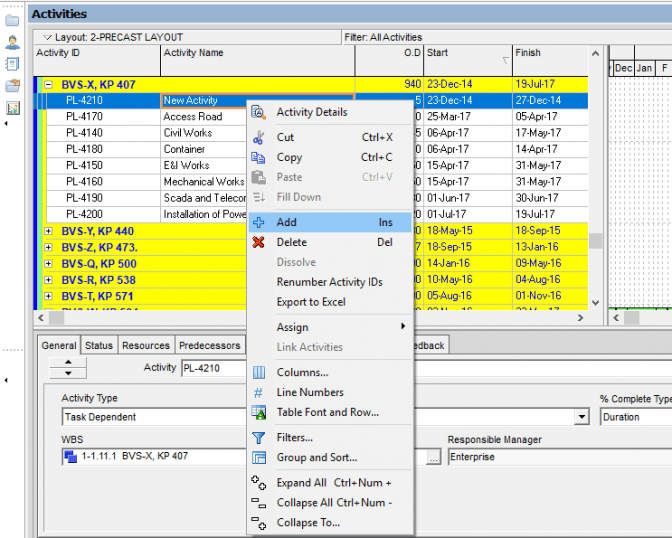

You can insert Primavera P6 Activity Types  into a schedule by using a couple of ways from the Activities window. (Figure 2)

1. You should click Add from the Command Bar
2. Then, you should select Edit and add from the main menu.
3. And press Insert on the keyboard.
4. Now, you can right-click in the activity table and Select Add.

You can change Activity ID settings (increment, prefix, suffix) using the Defaults tab in the bottom details area. Also, you can determine Activity Type, Duration Type and Percent Complete Type as defaults for new activities from this tab.

Summary of Primavera P6 Adding Activities

There are six Primavera P6 Activity Types and you can add them to a project schedule by using several ways. In summary, it is important to understand the activity types and their usage in order to build an effective schedule.
