7 Key Elements of HVAC for Commercial Buildings

There are several responsibilities for commercial building owners, facilities managers, and even renters. In addition to managing the staff and offering customer service, they are in charge of maintaining the building itself and all of its components. Failing to manage and detect problems with commercial HVAC systems may result in financial loss and, in some situations, clientele loss. HVAC for Commercial Buildings is challenging, let’s face it.

You’re in for a less than pleasant surprise if you thought household HVAC systems were confusing. Our goal is to provide you with the knowledge you need to stay on top of everything HVAC-related in your property, lowering your commercial HVAC utility expenditures and repair expenses.

We all know the HVAC installation fort worth, that is precisely the reason we developed this fantastic commercial HVAC guide. SuperTech HVAC can meet all of your needs if you’re a facility manager or business owner in Maryland and in need of commercial HVAC support. Our competent technicians have years of commercial HVAC experience. We promise a minimally uncomfortable and incredibly instructional encounter, whether you need extensive mending and replacement or just have questions. Let’s move forward.

How does Commercial HVAC Work?

Keeping building occupants comfortable with high-quality air in an atmosphere where the humidity is between 40 and 60 percent and the temperature is 72 degrees fahrenheit is the same objective of a commercial HVAC system as it is of a home HVAC system.

Air is frequently heated by burning fuel (gas, oil, electricity). The opposite, or cooling the air, is removing the warm interior air and bringing it to a cold temperature using refrigerant or water-cooled systems, while also removing the excessive humidity.

In ventilation systems, fans are used to deliver the necessary outside air, filter both the outside and recycled interior air, and expel the polluted air from the structure. The CO2 remains below 1 million molecules per liter as a result.

A strong ventilation system gets rid of smells, dilutes gasses (such as carbon dioxide), and halts the spread of respiratory diseases.

Without it, unwanted particles would stale the air and encourage the development of mold and mildew.

But how can the HVAC system at your company achieve all of that? Let’s look into it.

7 key elements of a business HVAC system are as follows:

1. Air Conditioner of HVAC for Commercial Buildings

A home air conditioner and the air conditioner in a commercial HVAC system are very similar. Its primary purposes are to remove heat from the air and dry it out. It is important to remember that the air conditioner does not simply cool the building; rather, it manages temperature along with a number of other subsystems.

2. Compressor

A compressor, such as the Carrier/Carlyle 06ET275360, starts the main “loop” that initiates the cooling cycle and enables you to regulate temperatures. Compression raises the temperature of the refrigerant. Once the refrigerant is transported to the condenser, the cooling process can start in earnest.

3. Condenser

The condenser is the heat exchanger that serves as the hot side of the air conditioner. It transfers heat from the building’s interior to the exterior. The liquid refrigerant then replaces the gas refrigerant. Moreover, a condenser can be a part of a heat pump, in which case it functions to bring heat from the outside in.

4. Thermostasis Valve at HVAC for Commercial Buildings

The condenser’s operation depends on the expansion valve. The pressure on the liquid refrigerant is let go, allowing for expansion to take place and changing the substance from a liquid to a vapor. The expansion valve allows for precise regulation of the refrigerant flow to the evaporator coil.

A precise valve improves system efficiency because high-pressure liquid refrigerant initially encounters the expansion valve at a very warm temperature. The thermal expansion valve can be mounted in front of the evaporator coil, placed on the inside or outside of the air handler, or brazed into the copper lines that connect to the air handler.

5. Air Handler (including Evaporator Coil and Blower)

The air handler is the component in charge of circulating air throughout the system. In most buildings, it is directly connected to the ductwork. Air is warmed or cooled and circulated throughout the building before being reintroduced to the system. It contains various devices in addition to a blower, heating, and cooling elements.

The part of the air handler that needs maintenance or repairs the most frequently is the evaporator coil. The evaporator coil stores the chilled refrigerant that the compressor provided. As the treated area’s air flows over the blower fan’s coil, heat is dissipated from it.

6. Terminal Units

Terminal units consist of an air filter, coil, and blower. sizes range widely in a HVAC for Commercial Buildings. The most common terminal units in a commercial HVAC system, as opposed to the largest make-up air units, are mid-sized rooftop units (RTUs) (MTUs). They have the ability to control the temperature in one room.

7. The Chill

There are chillers that are both water- and air-cooled. They function to take the heat out of the fluid passing through the pipes of the structure. An air-cooled chiller is normally positioned outside. And it employs fan-driven air to cool the condenser coils.

Water-cooled chillers are frequently employed in systems that need extended, intensive cooling. Water that is continuously circulates to cool them. As it circulates, warm water goes away, and cool water from an external cooling tower comes in.

HVAC System Types for Commercial Buildings

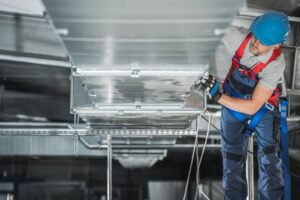

HVAC for Commercial Buildings

There are three main configurations for the HVAC system in a commercial building, while there are countless other possibilities.

Packaged Systems

Compressor, condenser, evaporator, and fan coil are all combined into one unit in packaged systems. There is a thermostat within. These units provide a significant advantage over bigger HVAC systems in buildings that lack the necessary space. This terminal air conditioners are typically window in various institutions since they all have residents who need to be able to control the temperature and quality of the air in their rooms, including hotels, hospitals, condominiums, and senior living facilities. Packaged terminal heat pumps may heat and cool a space by transporting heat from the outside to the inside in the winter or vice versa in the summer.

Separated Systems

Split Systems are typically attach to a building’s ductwork, such as that of a residential unit. Because they are great for residential structures. And they work well for smaller commercial facilities, such as tiny offices, restaurants, or retail. For each space, a thermostat or DDC controls are available. The adverse? To regulate the temperature in each place, you might need a different set of HVAC systems.

This jams up the region around the building’s rooftop. Zoning can work to govern different areas, but it is expensive. The various areas of a medium to big commercial building is able to heat and cool simultaneously using a variable refrigerant flow system (VRF). Because they are relatively new in the US, VRF systems are uncommon. To move warm air from one area that needs cooling to another that does, they employ heat pumps or heat recovery systems. We’ll go into more detail about this strategy later. What will now occur to this outside unit?

Rooftop RTU HVAC: HVAC for Commercial Buildings

RTU, or rooftop unit, describes a package unit on the roof. Due to their location on flat roofs, the rooftop HVAC systems’ essential components are shielded by weather-resistant housings (no more than 10 storeys high). Compressor, condenser, evaporator, and blower make up these compact, integrated HVAC units. After they are at the factory, a rooftop unit is a sort of air handler that circulates air through duct systems. RTUs’ capacity to heat and cool varies, with some having both capabilities. Within the RTUs rectangular housing, there is an air cowl that pulls outside air in order to condition it. Airflow flows towards coils that either heat or cool the air after it passes through the filter by revolving metal sheets known as dampers.

The fan begins to blow the air it has just sucked in into the duct system, where it is then carried to its destination. An RTU frequently uses both indoor and outdoor air to maintain safe CO2 levels and avoid overworking the unit on particularly hot or cold days in order to conserve electricity.
